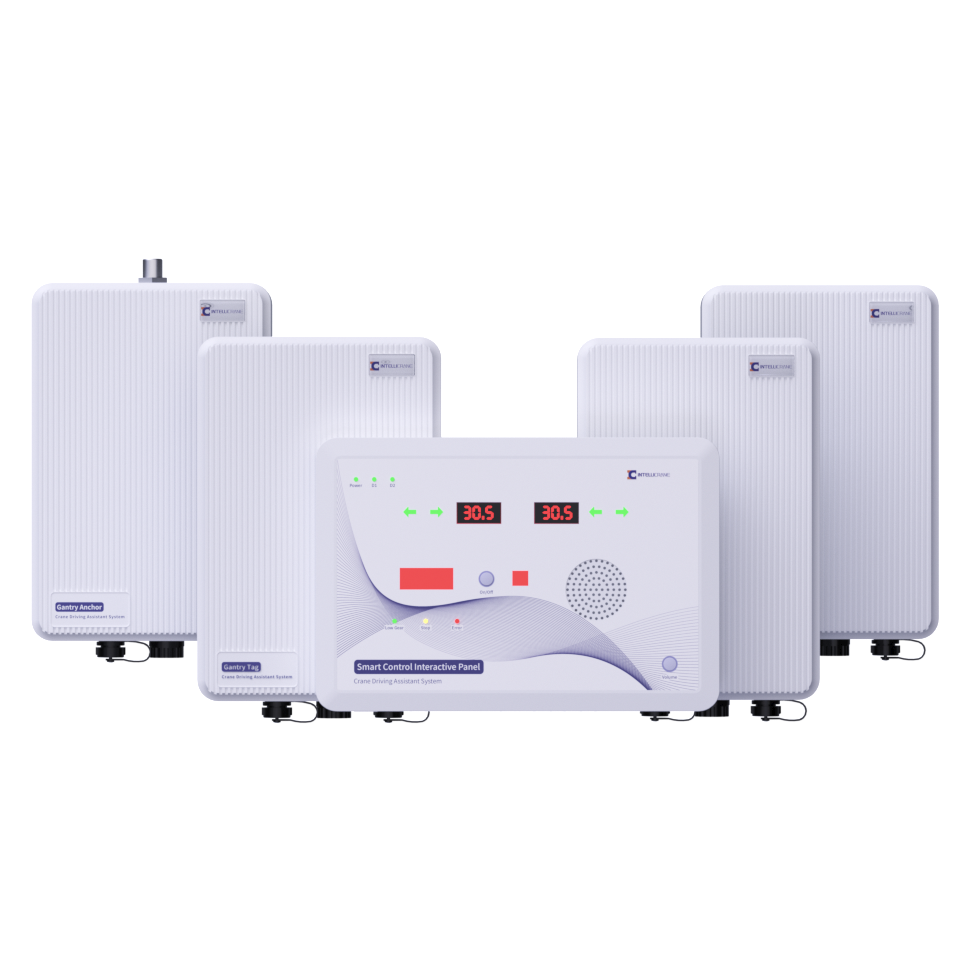

Crane Driving Assistant System (CDAS-20)
Through wireless technology, CDAS system fully senses the working environment of the crane, and the alarm will be triggered only when there is a real danger, and the sound and light are mild, so that the driver can continuously focus on his work without distraction. After the system is turned off, it will still provide safety protection and will automatically resume at a certain time, always protect the safety of driving and drivers.
DOWNLOAD BROCHURE
Features
PRODUCT
  • Excellent design for stable running
    Excellent design for stable running
    IP67 dustproof and waterproof
    Dustproof and anti-static treatment for circuit boards
    Wireless technology is stable and reliable for crane shaking environment
  • Energy saving and environmental protection
    Energy saving and environmental protection
    CDAS system saves 76% power
    Only one sensor needs to be installed to sense distance between front and rear crane, while laser collision avoidance systems require at least two sensors in this scenario
  • Full Field Awareness
    Full Field Awareness
    Interoperable crane data for safer and more accurate system decisions
    No need to add equipment, but also to ensure that the crane does not hit the end of track
    Fault self-test function for more efficient equipment maintenance
  • Multiple protection strategies for safer crane operation
    Multiple protection strategies for safer crane operation
    Active alert before braking and deceleration
    Automatic deceleration in low speed zones
    Automatic stop in danger zone
    Remind the specific distance even after the control system is closed manually
APPLICATION
Case Study
Challenge
A steel factory in Shandong, cranes are important handling equipment in the production workshop. It is very important to ensure the safety, reliability and continuous operation of cranes. The busy pace of production brings many challenges to safe and reliable operation of cranes, the collision between cranes is a typical safety accident, which will not only cause damage to the crane machinery, and even endanger personal safety.
Challenge
Solution
Crane Driving Assistant System uses wireless technology to monitor position, distance and motion status of the cranes in real time. When two cranes are close to a dangerous distance, the driver is empowered through intelligent sound and light prompts, and the relay is controlled to brake the crane in time to effectively ensure the safety of equipment and personnel and improve the efficiency of production operations.
Solution

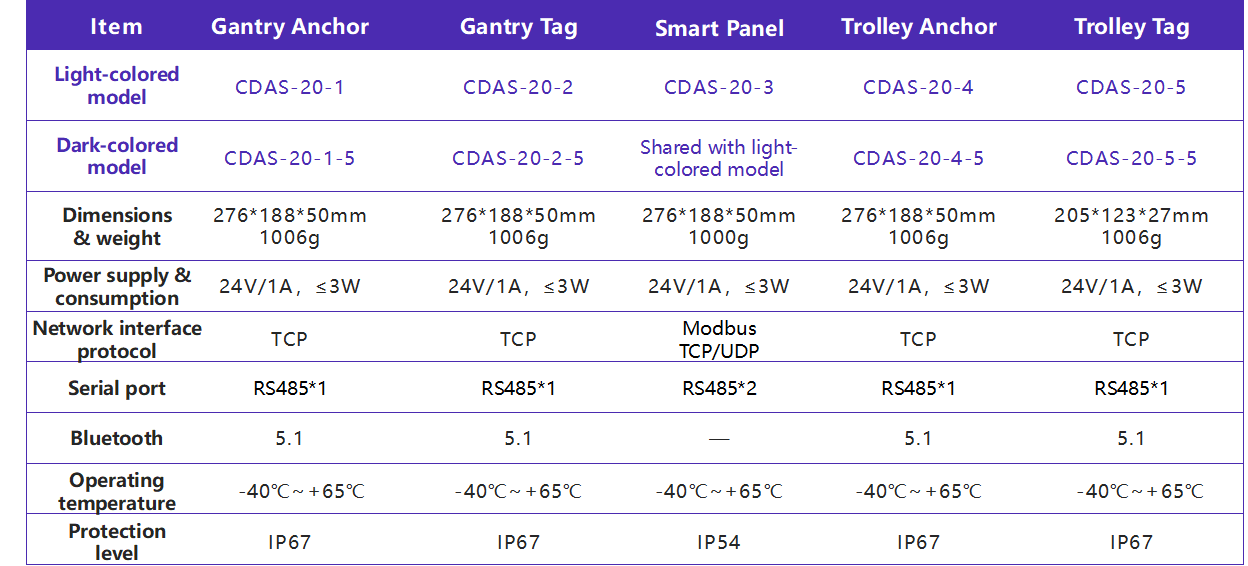

Specifications
Technical
Product Name Model Size Net Weight
Gantry Anchor
CDAS-20-1/CDAS-20-1-5
276*188*50mm
1006g
Gantry Tag
CDAS-20-2/CDAS-20-2-5
276*188*50mm
1006g
Smart Panel
CDAS-20-3
276*188*50mm
1006g
Trolley Anchor
CDAS-20-4//CDAS-20-4-5
276*188*50mm
1006g
Trolley Tag
CDAS-20-5//CDAS-20-5-5
276*188*50mm
1006g
Products Gantry Anchor Gantry Tag Smart Panel Trolley Anchor Trolley Tag
Power supply
24V/1A
24V/1A
24V/1A
24V/1A
24V/1A
Power Consumption
≤ 3w
≤ 3w
≤ 3w
≤ 3w
≤ 3w
Network interface protocol
TCP
TCP
Modbus TCP/UDP
TCP
TCP
Serial port
1 * RS485
1 * RS485
2 * RS485
1 * RS485
1 * RS485
Bluetooth
5.1
5.1
—
5.1
5.1
Operating Temperature
-40°C~+65°℃
-40°C~+65°℃
-40°C~+65°℃
-40°C~+65°℃
-40°C~+65°℃
Protection level
IP67
IP67
IP54
IP67
IP67
